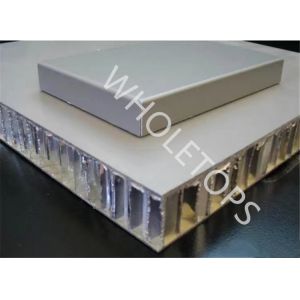

Aluminum Honeycomb Panel Sandwich Panel customized Size
Company information:
GuangDong Wholetops Building Materials Industry Co., ltd.
established in 2004,over 17years manufacturing experience,is a
national high-tech & professional manufacturing enterprise.
We are specialized in produce : solid aluminum panel, perforated
aluminum solid panel, curve aluminum panel, hyperbolic aluminum
panel, aluminum honeycomb panel &special aluminum ceiling and
other related metal building materials. Our factory is occupancy
56000 square meters with 750 employees in zhaoqing city. Our
capacity is 8000sqm per day.
Product Overview:
Material:Aluminum
Aluminum Alloy:1100/3003/5005
Thickness:8mm, 10mm , 12mm, 15mm, 18mm, 20mm 25mm
Surface Finished:PVDF Coated/Powder Coated
Coating Brand:PPG/Akzo Nobel
Warranty:10-20 years
Size:width≤1500mm, length≤5800mm
Color:Customized
Packing:Wooden Box
Warranty:10-20years
Class Fire Prevention:A2
MOQ:500㎡
Product Information:
WHOLETOPS brand Aluminum Honeycomb Panel is the use of the current international advanced aviation
technology combined with advanced automatic production equipment,
making the aluminum and aluminum honeycomb core bonded to a
high-tech environment-friendly decorative materials. We adopt
continuous high-temperature compounding technology from German, use
high-intensity heat plastic adhesion system, It comply with green
product direction, with super weather ability fluorocarbon resin
with colored pre-roll coating techniques. High strength, good
rigidity, light weight, ultra-smooth, uniform color, sound and heat
insulation, thermal insulation, moisture, fire, wind pressure,
seismic, weather resistance, long life and easy installation, wide
option for color and so on. What’s more, its’ cost performance is
far beyond the traditional aluminum panel, which is truly ‘Green
Environmental Protection, energy conservation’ and really the first
choice of material for modern decoration.
Specification:
1. Total Thickness: 8mm, 10mm , 12mm, 15mm, 18mm, 20mm, 25mm and so
on.
2. Top Panel: aluminum alloy sheet coated with fluro-carbon
resin((PVDF) coating with 0.8 – 1.0 mm thickness.
3. Core: aluminum honeycomb core
4. Bottom Panel: aluminum sheet with PVDF coated / Power coated
with 0.8—1.0mm thickness
5. Surface finish: PVDF coated / Power coated
6. Aluminum Alloy: 1100, 3003, 5005
7. size: width ≤ 1500mm, length ≤ 5800mm
Scopes of Application:
1. Building exterior walls decoration (especially for high-rise
building)Curtain wall decoration, advertising aboard,
signboards,ceiling etc.
2. Interior decoration, wall partitions, door, ceiling
3. Advertising board , signboards,insulation cars,
4. prototype of cabinet and so on
Product advantages:
1. light and straightness
2. excellent rigidness
3. high intensity
4. wind pressure resistance
5. fireproof, sound and thermal insulation, shock absorption
6. even coating and various colors
7. easy to maintain and environmental protection
